IP65 Waterproof Cloud Software Face Recognition Access Time Access Control
IP65 Waterproof Cloud Software Face Recognition Access Time Access Control
Model Specification:
Face Recognition Machines Features
1. Support multi person face recognition with 5 persons at same time (Single person or multi person recognition are selectable
2. Support WDR (wide dynamic range), with good performance. It can be detected under a strong light, dark light and backlight environment
3. Support mask detection (Choose Yes/No in the menu)
4. Support capture stranger's face if he appears in the camera
5. Display user enrolled photo when verified face.
6. Support set face recognition distance: close (around 0.8m), middle (around 1.5m), far (around 2~3 meters)
7. Support lock screen, after locking screen, user have to touch the screen to active the machine, then do face recognition. If not touch the screen, even if the user stands in front of machine it not recognizes face.
8. Support match in server.

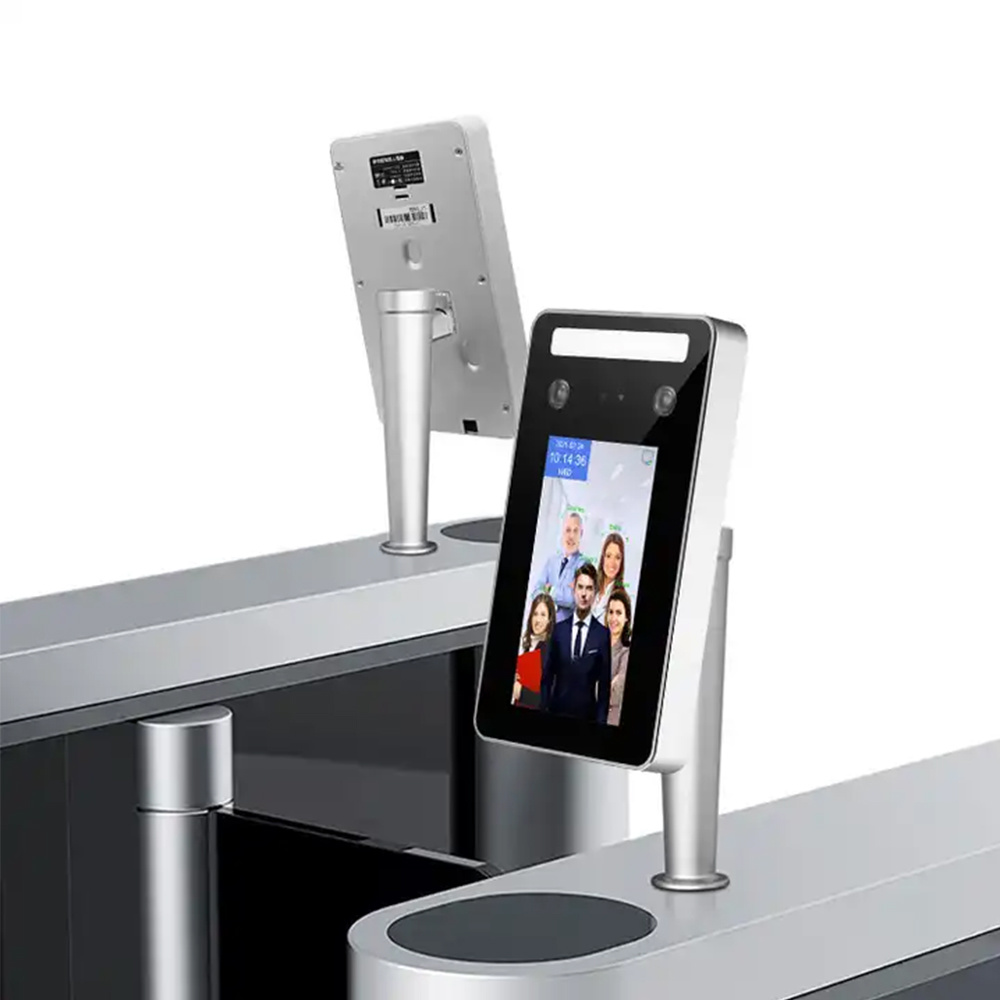

9. Waterproof rating is IP65 which suitable for outdoor installation on turnstile
Face Recognition Machines Features
1. Support multi person face recognition with 5 persons at same time (Single person or multi person recognition are selectable
2. Support WDR (wide dynamic range), with good performance. It can be detected under a strong light, dark light and backlight environment
3. Support mask detection (Choose Yes/No in the menu)
4. Support capture stranger's face if he appears in the camera
5. Display user enrolled photo when verified face.
6. Support set face recognition distance: close (around 0.8m), middle (around 1.5m), far (around 2~3 meters)
7. Support lock screen, after locking screen, user have to touch the screen to active the machine, then do face recognition. If not touch the screen, even if the user stands in front of machine it not recognizes face.
8. Support match in server.
9. Waterproof rating is IP65 which suitable for outdoor installation on turnstile
Price：
￥0.00
| Economy 8 inch Face Recognition Door Access control Time attendance machine with WIFI SDK Software | |
| Product name | Al Dynamic Face Recognition Time Attendance Access Control Terminal |

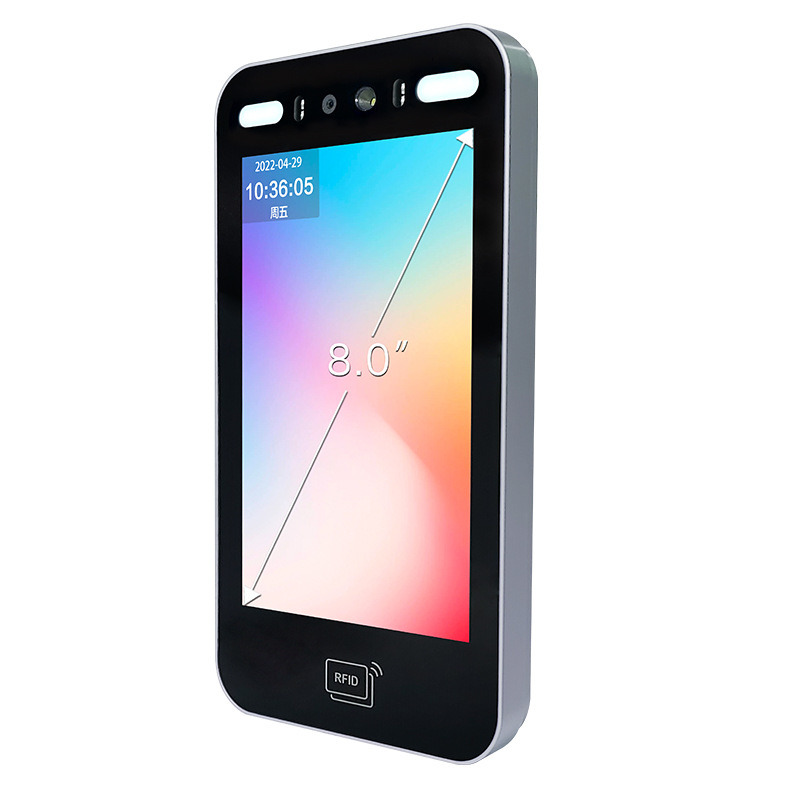

| Screen | 8.0 Inch. HD 800*1280, Capacitive Touch Screen |
| Keypad | Touch keypad Smart Access Control |
| Operation system | LINUX 3.10 |
| CPU.NPU | 1.2G Dual-Core ARM Cortex-A7,1200G (1.2T) |
| RAM | 512MB DDR3L |
| ROM | eMMC Flash8GB micro camera |
| Binocular camera | 200W Colorful WDR+200W Infrared live camera |
| Logs capacity | 500000 |
| Face Registration | Local operation: Enroll face with machine, import user photo with U disk |
| Software operation: Import user photo to software, capture user photo with camera | |
| Verification | Dynamic face recognition, password, ID/IC card optional |
| Face capacity | 20000 |
| Card Capacrty | 20000. ID and IC Card |
| Password Capacity | 20000 |
| Face Recognition Accuracy | 99.70% |
| Recognition Speed | s0.2s, support single user/multi user(at most 5 users) recognition at same time |
| Recognition Distance | 0 5-2.5 meters (0.5*1.5 meters with live face recognition on) |
| Prevent Photo | Dual camera anli-counlerfeiting, prevent recognition with pholo/video |
| Principle of Identification | Face algorithm technology of multi-task cascaded convolutional neural network based on video stream for dynamic face detection, tracking and recognition |
| WDR | Wide dynamic range, support accurate face recognition under Strong light, dark light and backlight |
| USB | USB2.0 x 1 f Support U disk import/export data |
| Power supply | DC 12V interface x 1 |
| Speaker Interface | Reserved for extended Speaker Interface |
| Network Communication | TCP/IP Support C/S LAN communication. Wifi (optional) |
| Free Attendance software | Support exporting excel attendance report with U disk |
| Shift | Support shift setting and importing shift schedule with U disk |
| Management Software | Support PC software to manage data through network connection with equipment |
| Access Control Function | Door unclosed alarm, forced door opening alarm, alarm linkage and output, one set of door opening signals, one set of alarm signals, time permission control, connect external access control reader, Wiegand 26/34 Output&lnput |
| Environmental adaptability | Working temperature: -15°C~+45°C (storage temperature -40°C~+65°C), |
| Working humidrty: 20%~90% (storage humidity 20%~90±2%). | |
| Dark enviroment: LED Soft light automatic fill light (Automatic control according to ambient light) | |
| Ambient light adaptation range: 0-50000Lux | |
| Multi language | English. Spanish, Arabic, Thai. Farsi. Portuguese, French, Italian, Japanese, Korean, etc |
| Broadcase and ring | Support display name, voice broadcase name builtin bell ring |
| Automatic fill light | Support infrared fill light, the white fill light automatically lights up when face is captured in dark light |
| Working Current | stand-by current: 310mA , Working current: 520mA |
| QR Code Scanner | Support |
| Working Voltage | DC 12V |
| Installation Way | Standard: Wall mount, desktop stand; Optional: bracket for turnstile, floor stand |

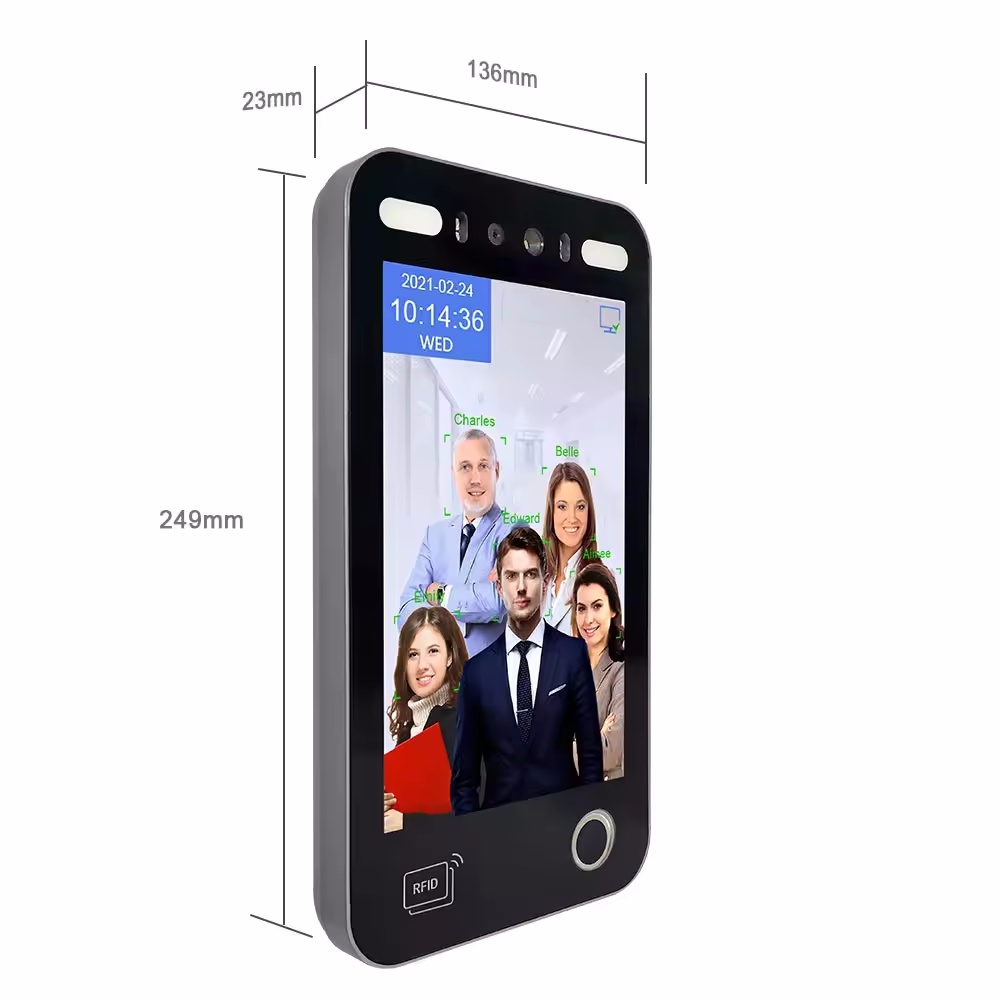

| Machine Dimension | 265x132 6x20mm |
| Carton dimension | Size: 480x438x229mm, 12Kg/cartonr 10units/carton |
