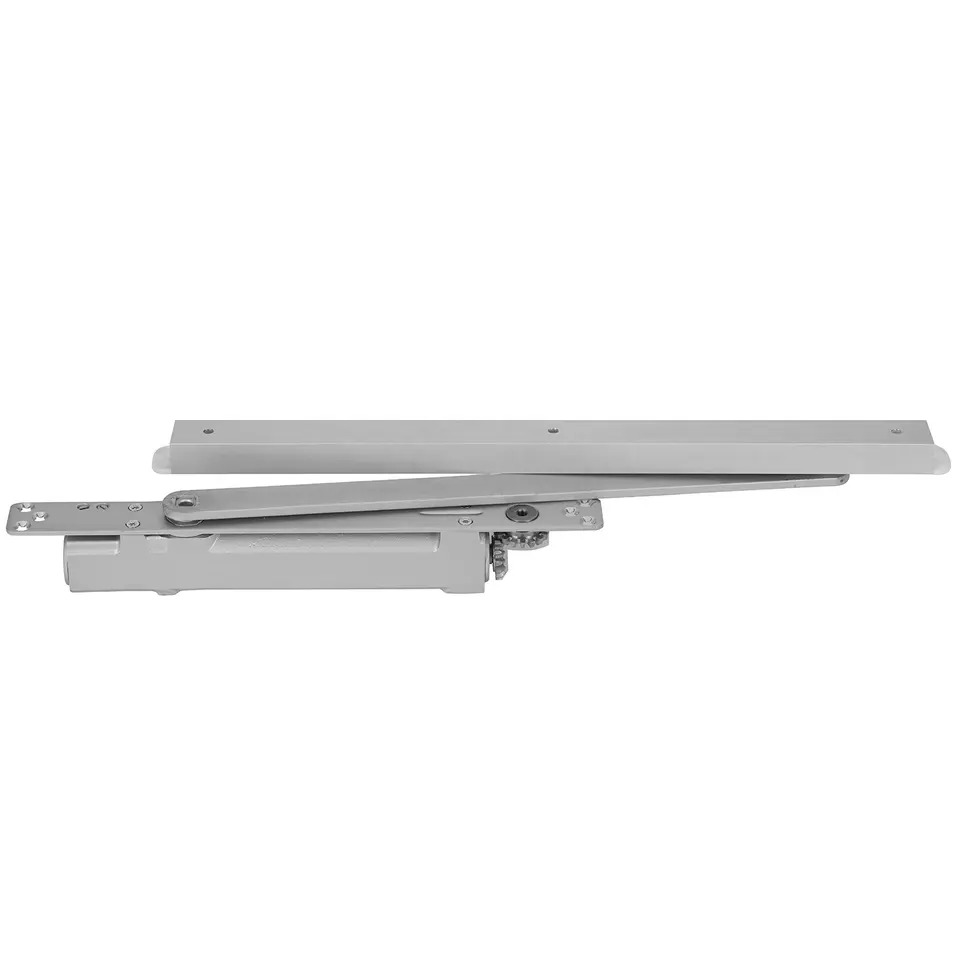

UL List Concealed Cam Action Automatic Hydraulic Door Closer for 20-150kg Door
UL List Concealed Cam Action Automatic Hydraulic Door Closer for 20-150kg Door
Model: QN-3000
● Traditional america style heavy duty closer for commercial doors
● Precise cast aluminum body & forged steel arm, hold open arm optional
● Adjustable closing & latching speed
● Adjustable spring force #2-5, fixed spring force#3,#4
● Non-Handed installation
● Adjustable back check, Delayed action & hold open function optional
● ANSI 156.4 certification 2 Millions life cycle
● UL10C certification 3 hours fire rating
● Traditional america style heavy duty closer for commercial doors
● Precise cast aluminum body & forged steel arm, hold open arm optional
● Adjustable closing & latching speed
● Adjustable spring force #2-5, fixed spring force#3,#4
● Non-Handed installation
● Adjustable back check, Delayed action & hold open function optional
● ANSI 156.4 certification 2 Millions life cycle
● UL10C certification 3 hours fire rating
Price：
￥0.00
UL List Concealed Cam Action Automatic Hydraulic Door Closer For 20-150kg Door
| Technological Data | |
| Power Size | EN 2~5 Adjustable, Two-way open |
| Applicable door weight | 20-150kg |
| Applicable door width | 500-1250mm |
| Function | Hold Open |
| Feature | With sliding arm. Adjustable, Suitable for right hand left hand opening doors |
| Closing speed | Adjustable |
| Standard | Products comply with CE, EN1154 ,UL, ANSI Standards |
| Work Temperature | -40ºC~60ºC |
| Test Cycles | 1 Million |
| Specifications for Other Models | ||||
| Item No | QN-117 | QN-119 | QN-213 | QN-310 |
| Material | Aluminum Alloy | |||
| Door Weight | 40-65KG | 60-90KG | 100-150KG | 60-90KG |
| Door Width | 600-1200mm | 800-1300mm | 900-1300mm | 600-1250mm |
| Installation dimensions | 162*19mm | 188*19mm | 299*19mm | 60*38mm |
| Working Temperature | -40ºC~60ºC | |||
| Max Opening Angle | 180 Degree or Marking 90 Holdopen | |||
| Function | Stop, Adjustable, Buffered | |||
| Feature | Dual valves to adjust the closing and latching speed | |||
| Color | Silver, gold, white, black, brown, bronze | |||
| Warranty | 5 years | |||
| The Endurance Testing | Durability test 1 million times | |||
