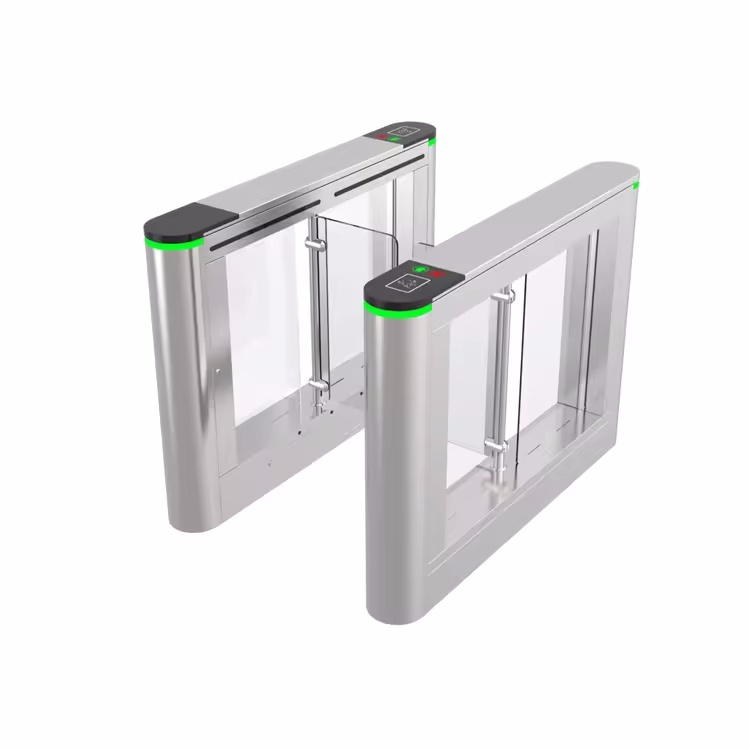

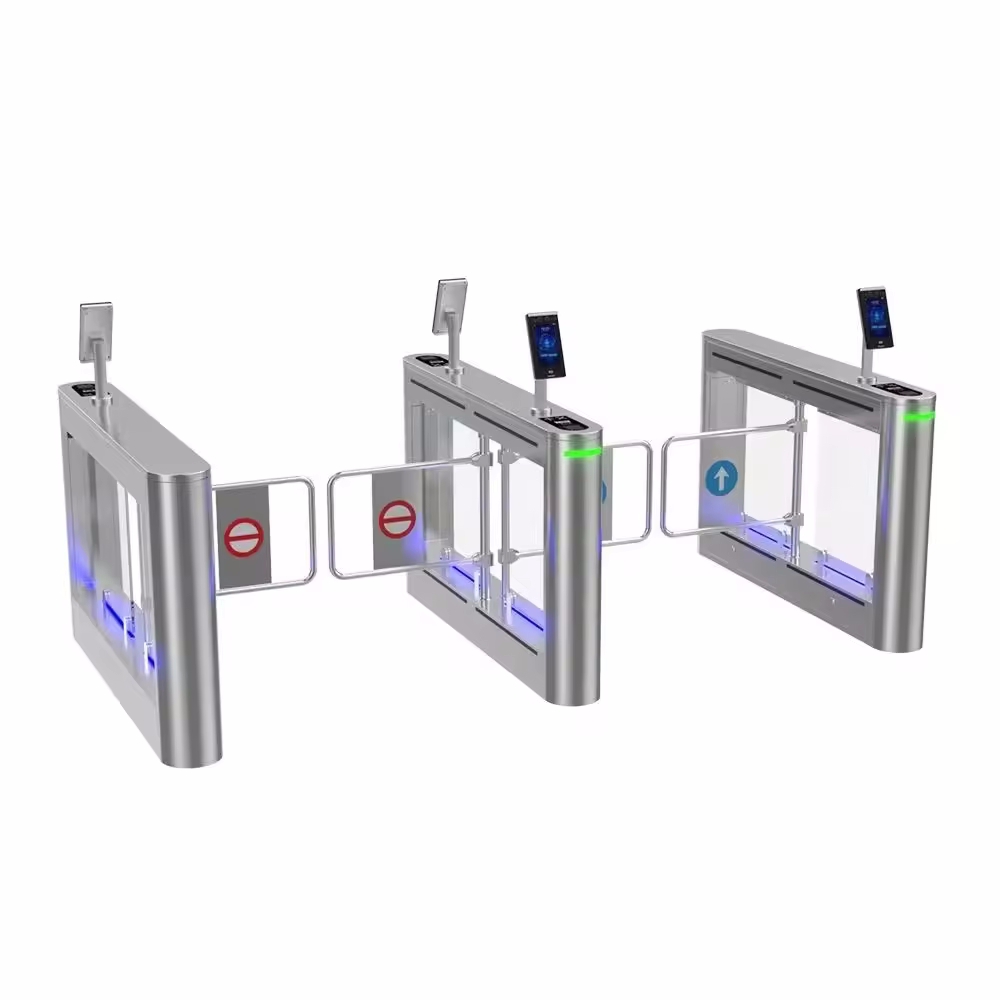

Item | Turnstile Gate |
Place of Origin | China |
Brand Name | QINIU MACHINE |

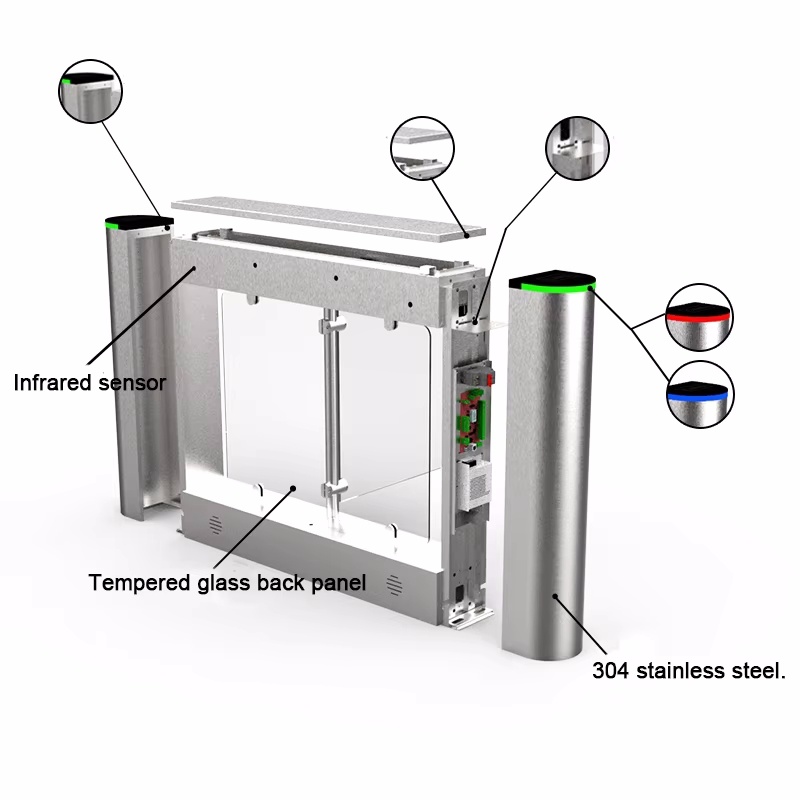

Case material | Domestic standard 304 stainless steel, with 8mm tempered glass on the back panel |
Structure | The chassis is fixed by welding, rivets, and screws in three ways, and each individual component that is damaged can be replaced separately |
Working voltage | AC220±10%V 50±10%HZ |
Drive motor | Brushless dc motor |

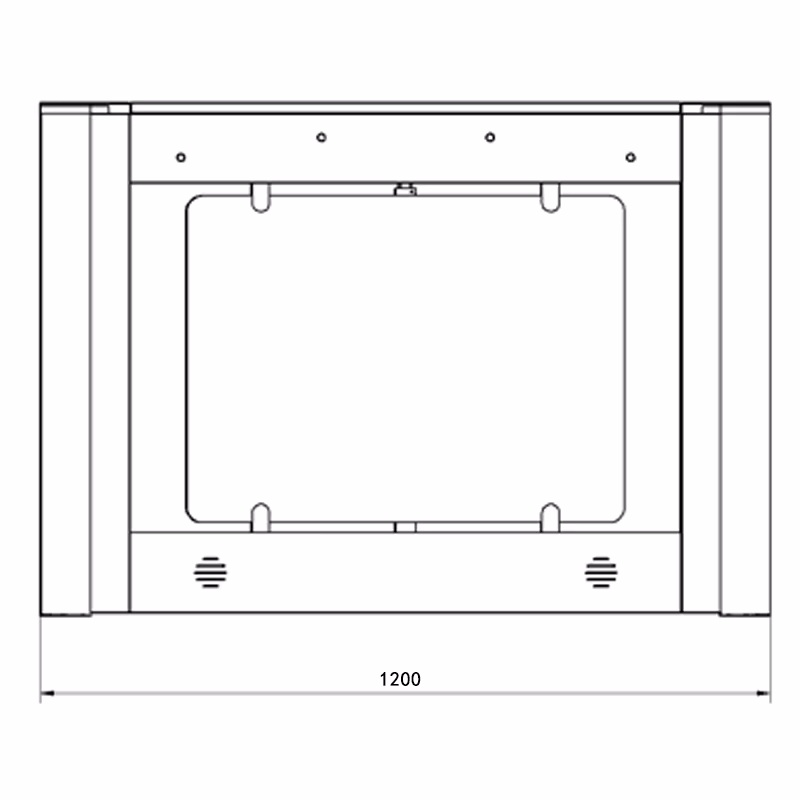

Size | 1400*190*980 (mm) |
Channel width | 600-1000 (mm) custom |
Swing arm transmission angle | 180 degrees |
Swinging direction | Unidirectional or bidirectional |
Gate opening and closing time | 1-2 seconds |
Normal service life | 5 million times |
Fire linkage function | Infrared 4 pairs |
Light control | Three color lights standby blue, illegal entry red, normal passage green |

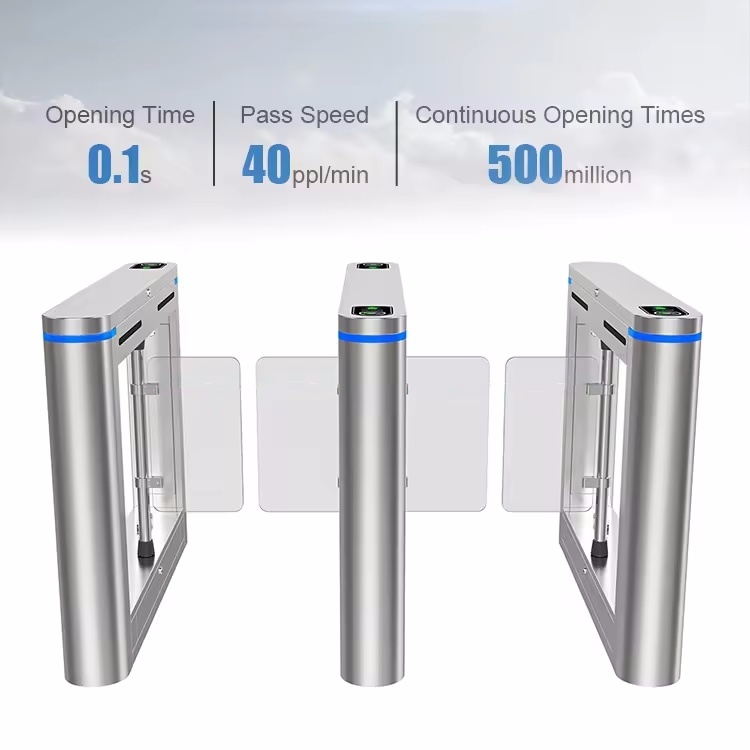

Traffic speed | 40 people/minute (normally open), 25-30 people/minute (normally closed) |
Input | Relay switch signal or 12V level signal or 12V pulse signal with a pulse width greater than 100ms, driving current greater than 10mA |
