Durable Flap Barrier Gate Metro School Turnstile Access Control

PRODUCTS > Parking Lot Equipment > Durable Flap Barrier Gate Metro School Turnstile Access Control

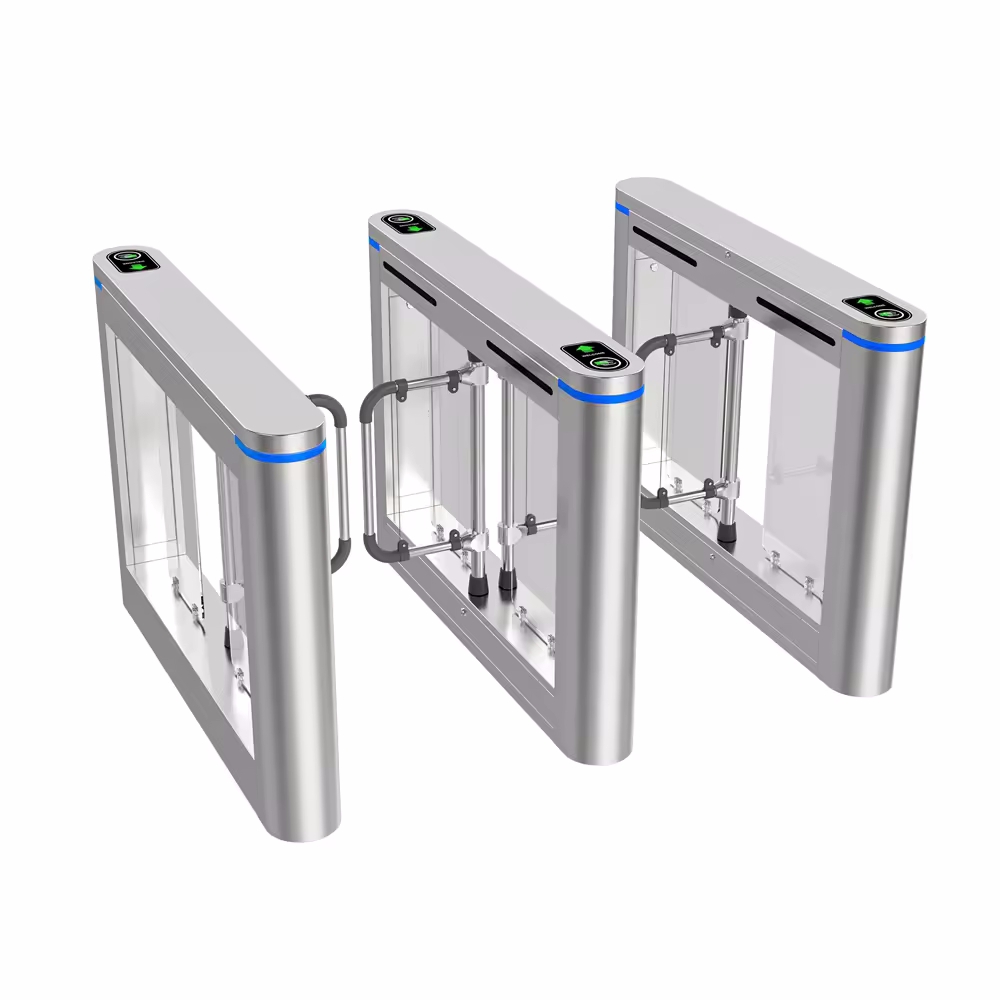

Durable Flap Barrier Gate Metro School Turnstile Access Control

Turnstile has strong overall integrity and high safety. It strictly implements one authorized passage for one person at a time to prevent tailgating and crawling in large factory parks, nuclear power plants, military management areas, embassies, airport maintenance areas, research and development centers, sports venues and other safe places. It is widely used in high security level entrance and exit control, moderate traffic capacity, attractive exterior design, and can be used in various harsh environments. It is the preferred channel product for indoor/outdoor use.
Price: 0.00

Product Parameters

ItemTurnstile Gate
Place of OriginChina
Brand NameQINIU MACHINE
Case materialDomestic standard 304 stainless steel, with 8mm tempered glass on the back panel
StructureThe chassis is fixed by welding, rivets, and screws in three ways, and each individual component that is damaged can be replaced separately
Working voltageAC220±10%V 50±10%HZ
Drive motorBrushless dc motor
Size1400*190*980 (mm)
Channel width600-1000 (mm) custom
Swing arm transmission angle180 degrees
Swinging directionUnidirectional or bidirectional
Gate opening and closing time1-2 seconds
Normal service life5 million times
Fire linkage functionInfrared 4 pairs
Light controlThree color lights standby blue, illegal entry red, normal passage green
Traffic speed40 people/minute (normally open), 25-30 people/minute (normally closed)
InputRelay switch signal or 12V level signal or 12V pulse signal with a pulse width greater than 100ms, driving current greater than 10mA


Product Description
