Free PC Software APP Cloud System Dynamic Facial Recognition Access Control Terminal

PRODUCTS > Access Control > Free PC Software APP Cloud System Dynamic Facial Recognition Access Control Terminal

Free PC Software APP Cloud System Dynamic Facial Recognition Access Control Terminal

Model: QN-F11
Screen: 4.3 Inch Touch Screen
Verification: Face recognition, Fingerprint, password, ID Card(IC card optional)

Face Recognition Machines Features
1. Support multi person face recognition with 5 persons at same time (Single person or multi person recognition are selectable
2. Support WDR (wide dynamic range), with good performance. It can be detected under a strong light, dark light and backlight environment
3. Support mask detection
4. Support capture stranger's face if he appears in the camera
5. Display user enrolled photo when verified face.
6. Support set face recognition distance: close (around 0.8m), middle (around 1.5m), far (around 2~3m)
7. Support lock screen, after locking screen, user have to touch the screen to active the machine, then do face recognition. If not touch the screen, even if the user stands in front of machine it not recognizes face

Price：￥0.00

Product details

Product Parameters

Specifications
Screen	4.3 Inch Touch Screen
Keypad	Touch keypad
Operation system	LINUX 3.10
CPU	800M single-core ARM Cortex-A7
NPU	800G (0.8T) computing power
RAM, ROM	256M DDR3L, 4G EMMC
Camera	2MP color camera + 2MP infrared camera
Live detection	Dynamic dual-camera anti-counterfeiting, to prevent all kinds of black-and-white, color photos and videos from deception
Logs capacity	500000
Verification	Face recognition, Fingerprint, password, ID Card(IC card optional)
Face capacity	5000
Fingerprint Capacity	10,000
Card Capacity	5000
Password Capacity	5000
Face Recognition Accuracy	99.70%
Recognition Speed	≤0.2s
Recognition Distance	0.5~2.5 meters (0.5~1.5 meters with live face recognition on)
Principle of Identification	Face algorithm technology of multi-task cascaded convolutional neural network based on
	video stream for dynamic face detection, tracking and recognition
WDR	Wide dynamic range, support accurate face recognition under Strong light, dark light and backlight

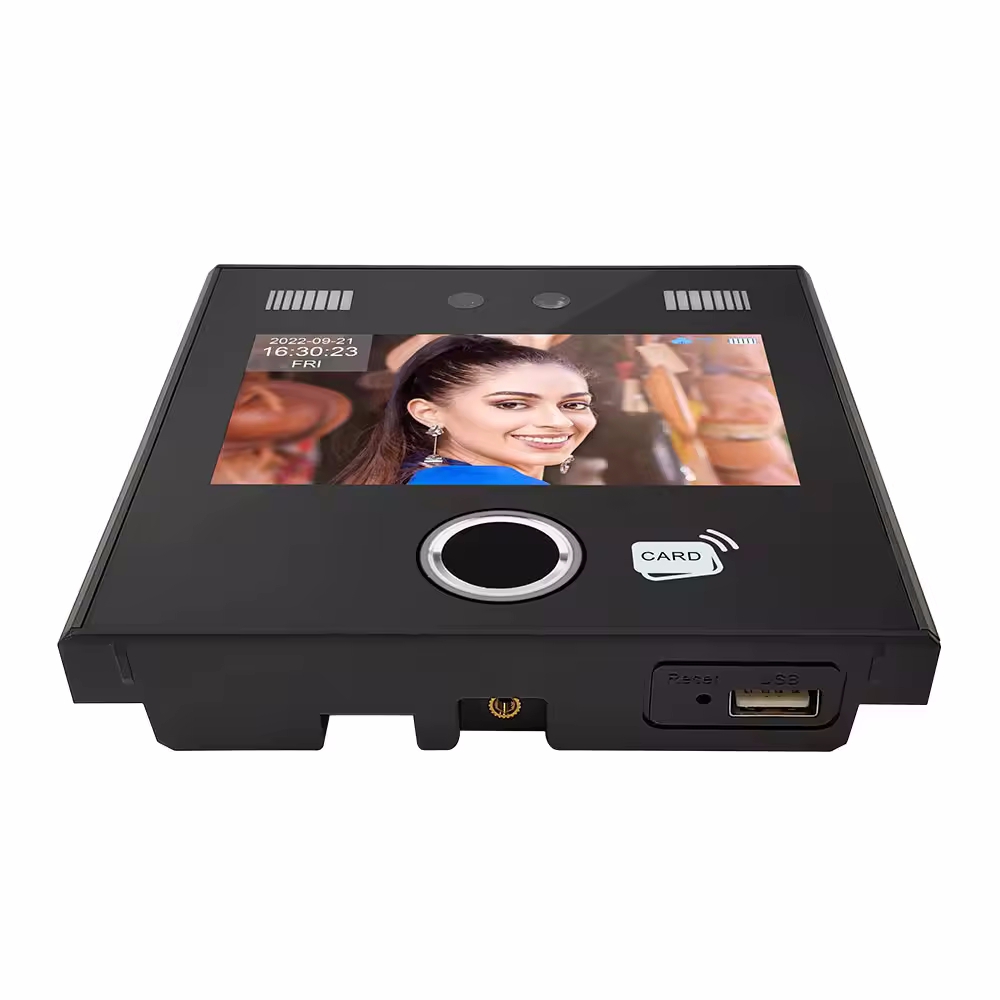

USB	USB2.0x1,Support U disk import/export data
Power supply	DC12V 1A
Network Communication	TCP/IP, USB, Wifi
Free Attendance software	Local software and web based cloud software
Access Control Interface	Relay output1set Exit button output1set Doorbell output/external ring Weigand input/output 26/34
Environmental adaptability	Working temperature: 0~45ºC
	Working humidity: 20% ~90%
	Dark environment: LED Soft light automatic fill light (Automatic control according to ambient light)
Muti language	Support 20 national languages and voices including English, Spanish, Arabic, Thai, Farsi, Portuguese, French, Italian, Japanese, Korean, etc
