8 Inch Linux System Ai Dynamic Facial Free Sdk Software Access Control

Model: QN-FX18

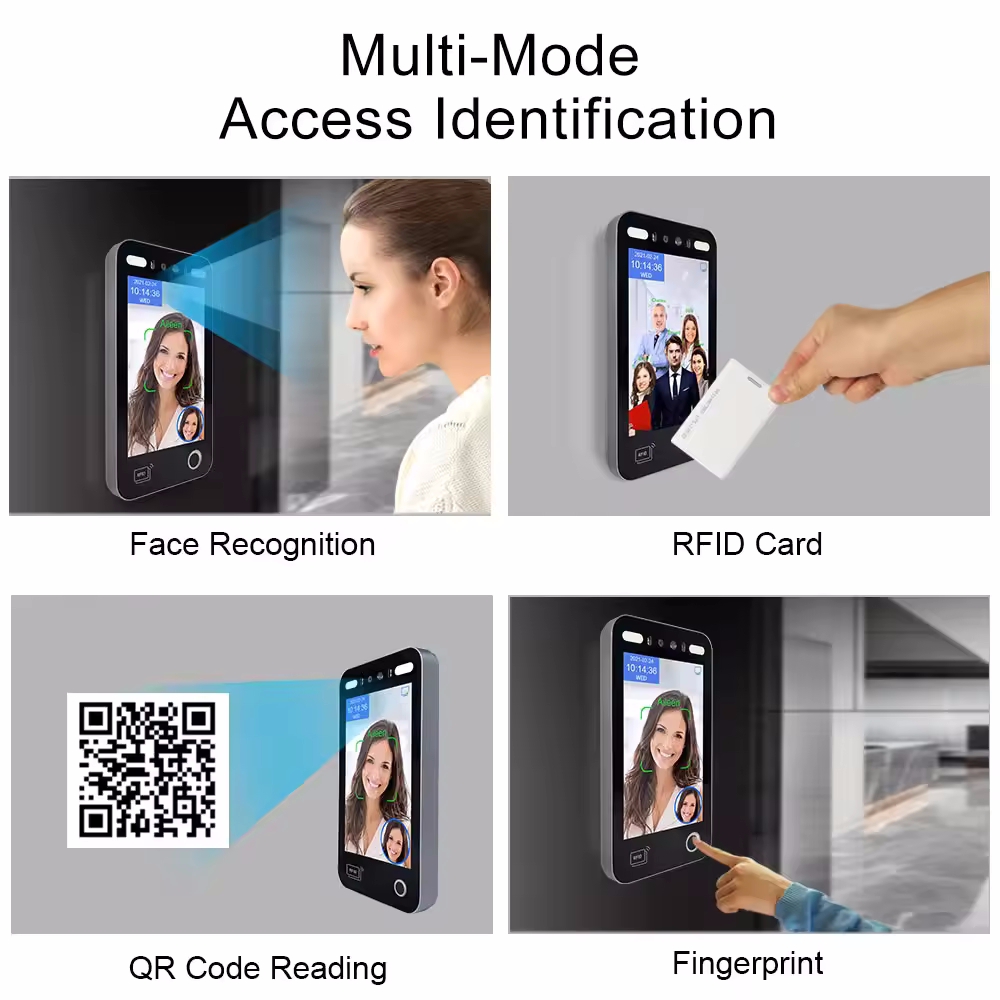

8 Inch screen time attendance machine with Face/Fingerprint/Password/Card identification ways.
Free PC software, mobile App, cloud with SDK
10 Inch screen time attendance machine with Face/Fingerprint/Password/Card identification ways.
Free PC software, mobile App, cloud with SDK

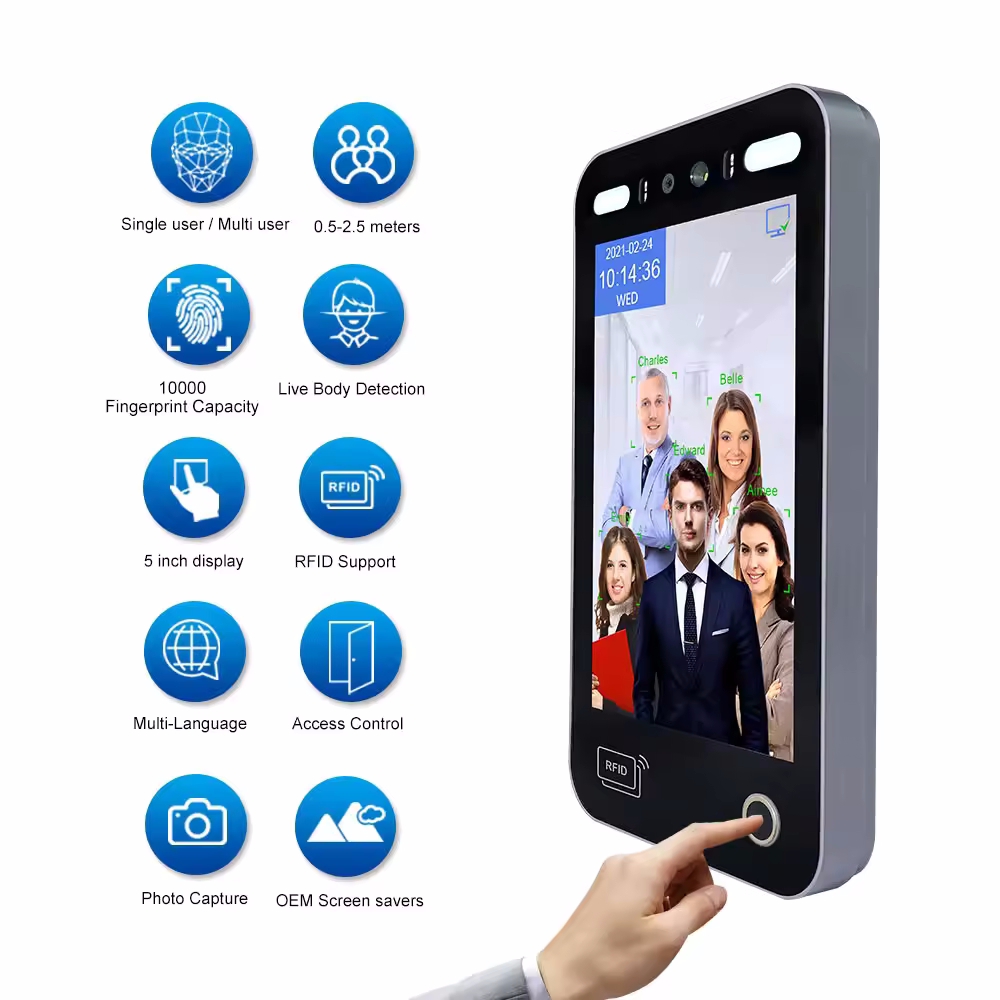

Face Recognition Machines Features
1. Support multi person face recognition with 5 persons at same time (Single person or multi person recognition are selectable
2. Support WDR (wide dynamic range), with good performance. It can be detected under a strong light, dark light and backlight environment
3. Support mask detection
4. Support capture stranger's face if he appears in the camera
5. Display user enrolled photo when verified face.
6. Support set face recognition distance: close (around 0.8m), middle (around 1.5m), far (around 2~3m)
7. Support lock screen, after locking screen, user have to touch the screen to active the machine, then do face recognition. If not touch the screen, even if the user stands in front of machine it not recognizes face

Price：￥0.00

Product details

Product Parameters

Product name	Dynamic Face Recognition Time Attendance and Access Control Terminal
Screen	8.0 Inch IPS Touch Screen, HD 800*1280
Keypad	Touch keypad
Operation system	LINUX
CPU,NPU	1.2G Dual-Core ARM Cortex-A7,600G(0.6T)
RAM	256MB DDR3L
ROM	eMMC Flash 4GB
Binocular camera	Real Sensor 1/2.9 inch FOV 75° 200W pixel Sony high-definition color camera WDR wide dynamic Sensor 1/5 inch FOV 75°200W pixel infrared live camera
Live detection	Dynamic dual-camera anti-counterfeiting,to prevent all kinds of black-and-white color photos and videos from deception
Logs capacity	500000
Verification	Dynamic face recognition, password, ID& IC card
Face capacity	5000
Fingerprint Capacity	10000
Card Capacity	5000(ID/IC)
Password Capacity	5000
Face Recognition Accuracy	99.70%
Recognition Speed	s0.2s,support single user/multi people(at most 5 people) recognition at same time
Recognition Distance	0.5~2.5 meters (0.5~1.5 meters with live face recognition on)
WDR	Wide dynamic range, support accurate face recognition under strong light, dark light and backlight Supports simultaneous recognition of up to 5 people,face tracking,face capture
USB	USB2.0x1,Support U disk import/export data
Network Communication	TCP/IP, Wifi, 4G(optional)
Management Software	Desktop, Cloud, SDK, Mobile APP
Access Control Interface	Relay output1set Alarm output1set Exit button1set Wiegand: input&output 26/34 Door sensor1set
Environmental adaptability	Working temperature:-15C~+45°C (storage temperature -40C~+65°C) Working humidity:20%~90% (storage humidity 20%~90+2%)
Muti language	Support more than 20 national languages and voices including English, Spanish, Arabic, Thai, Farsi, Portuguese, French, Italian, Japanese, Korean, etc
Automatic fill light	Support infrared fill light,the white fill light automatically lights up when face is captured in dark light
Working Current	stand-by current:310mA,Working current: 520mA
QR Code Scanner	Support
Mask Detection	Support
Power Supply	DC12V 2A

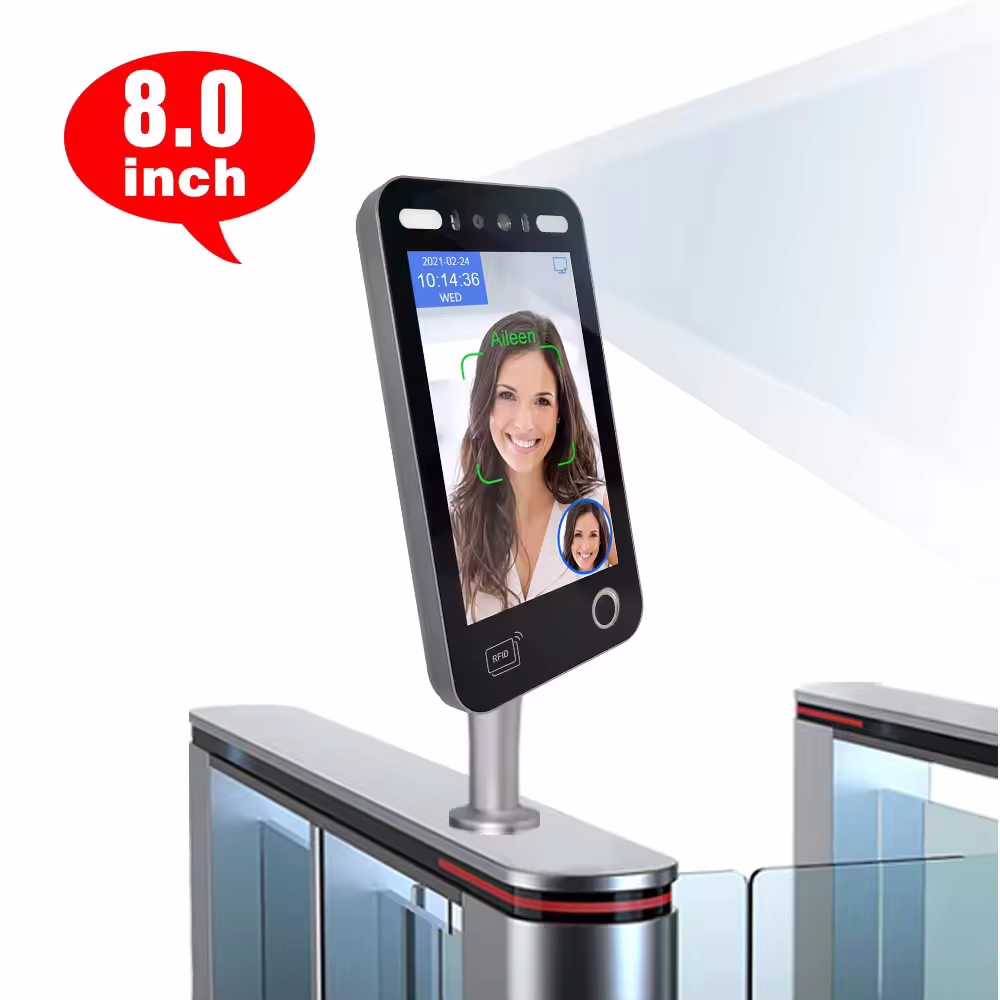

Installation Way	Standard: Wall mount, desktop stand; Optional: bracket for turnstile, floor stand
